Features
>7” TFT LCD screen, with outstanding effect
>Easy to use with big buttons
>Color Video phone, support hand-free calls
>Support monitoring, video talk, unlock function
>Support Information check, can receive Message from guard office
>Directly notice to guard office for emergency
>Compatible to up to 6 security sensors ( burglar, fire, gas leakage ,etc)
Specifications
|
Model |
VTH1500AS-S |
|
System |
Main Processor |
NEC MCU |
|
Operation Interface |
Simple OSD message |
|
Input Device |
Mechanical keys, 5 |
|
Video |
Video Input |
1-ch CVBS analog video |
|
Video Display |
7” color LCD, resolution: 800x480 |
|
Monitoring |
Support monitoring with monitor button |
|
Audio |
Audio Input |
1-ch microphone input (Omni-directional electrets) |
|
Audio Output |
1-ch loudspeaker output |
|
Bidirectional Talk |
1-ch bidirectional talk, two way |
|
Alarm |
Alarm input |
Support 6 channels input |
|
Alarm output |
Support 1 channel input |
|
Network Function |
Net Control |
Monitor & Unlock |
|
Call management center for emergency |
|
RS485 bus |
|
Remotely upgrade |
|
Interface |
Net Interface |
RJ45（non-Ethernet）plug connected with distributor, including power supply, AV and control signal |
|
RS485 |
Bus control and software upgrading |
|
DC Power |
24V |
|
System Upgrading |
Remote network upgrading |
|
General |
Power |
24V / 0.3A |
|
Power Consumption |
max 6W |
|
Temperature |
-5℃－＋55℃ |
|
Humidity |
20%－90% |
|

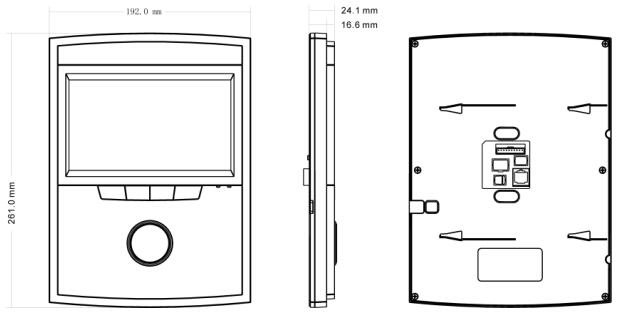

Dimensions |
261.0mm*192.0mm*24.1mm（L*W*T） |
|
Weight |
0.7 Kg |
|
Installation Method |
Surface mounted & Flush Mounted |  |
