Products
|
>> IP Camera >> Eco-savvy 3.0 Series |
 |

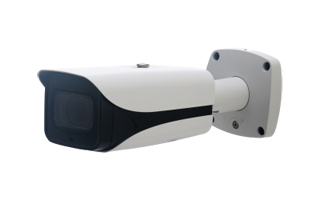

2MP WDR IR Bullet Network Camera
|
|
| |
|
Camera |
|
Image Sensor |
1/2.8” 2Megapixel progressive scan CMOS |
|
Effective Pixels |
1920(H) x 1080(V) |
|
RAM/ROM |
256MB/32MB |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual, 1/3(4)~1/100000s |
|
Minimum Illumination |
0.006Lux/F1.4 ( Color,1/3s,30IRE)
0.05Lux/F1.4 ( Color,1/30s,30IRE)
0Lux/F1.4 (IR on) |
|
S/N Ratio |
More than 50dB |
|
IR Distance |
Distance up to 200m (656ft) |
|
IR On/Off Control |
Auto/ Manual |
|
IR LEDs |
4 |
|
Lens |
|
Lens Type |
Motorized/ Auto Iris(HALL) |
|
Mount Type |
Board-in |
|
Focal Length |
5.3mm~64mm |
|
Max. Aperture |
F1.4 |
|
Angle of View |
H: 59°~5°, V:34°~3° |
|
Optical Zoom |
12x |
|
Focus Control |
Motorized |
|
Close Focus Distance |
1.5m(4.9ft) |
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
W |
73m(236ft) |
29m(95ft) |
14m(46ft) |
7m(23ft) |
|
T |
882m(2893ft) |
353m(1158ft) |
176m(577ft) |
88m(288ft) |
|
Pan/Tilt/Rotation |
|
Pan/Tilt/Rotation Range |
Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚ |
|
Intelligence |
|
IVS |
Tripwire, Intrusion, Object Abandoned/Missing |
|
Advanced Intelligent Functions |
Face Detection |
|
Video |
|
Compression |
H.265+/H.265/H.264+/H.264 |
|
Streaming Capability |
3 Streams |
|
Resolution |
1080P(1920x1080)/1.3M(1280x960)/
720P(1280×720)/D1(704×576/704×480)/
VGA(640×480)/CIF(352×288/352×240) |
|
Frame Rate |
Main Stream: 1080P(1~50/60fps) |
|
Sub Stream: D1(1~50/60fps) |
|
Third Stream: 1080P(1~25/30fps) |
|
Bit Rate Control |
CBR/VBR |
|
Bit Rate |
H.264: 24~9472Kbps
H.265: 14~5632Kbps |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
BLC Mode |
BLC / HLC / WDR(120dB) |
|
White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D DNR |
|
Motion Detetion |
Off / On (4 Zone, Rectangle) |
|
Region of Interest |
Off / On (4 Zone) |
|
Electronic Image Stabilization (EIS) |
N/A |
|
Smart IR |
Support |
|
Defog |
N/A |
|
Digital Zoom |
16x |
|
Flip |
0°/90°/180°/270° |
|
Mirror |
Off / On |
|
Privacy Masking |
Off / On (4 Area, Rectangle) |
|
Audio |
|
Compression |
G.711a/ G.711Mu/ AAC/ G.726 |
|
Network |
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Protocol |
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;
IGMP; SNMP |
|
Interoperability |
ONVIF, PSIA, CGI |
|
Streaming Method |
Unicast / Multicast |
|
Max. User Access |
10 Users /20 Users |
|
Edge Storage |
NAS
Local PC for instant recording
Mirco SD card 128GB |
|
Web Viewer |
IE, Chrome, Firefox, Safari |
|
Management Software |
Smart PSS, DSS, Easy4ip |
|
Smart Phone |
IOS, Android |
|
Certifications |
|
Certifications |
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B |
|
Interface |
|
Video Interface |
1 Port(For adjustment only) |
|
Audio Interface |
1/1 channel In/Out |
|
RS485 |
N/A |
|
Alarm |
2 channel In: 5mA 5VDC
1 channel Out: 300mA 12VDC |
|
Electrical |
|
Power Supply |
DC12V, PoE (802.3af)(Class 0) |
|
Power Consumption |
<12.95W |
|
Environmental |
|
Operating Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|
Strorage Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|
Ingress Protection |
IP67 |
|
Vandal Resistance |
IK10 |
|
Construction |
|
Casing |
Metal |
|
Dimensions |
273.2mm×95.0mm×95.0mm (10.76”×3.74”×3.74”) |
|
Net Weight |
1.11Kg (2.44lb) |
|
Gross Weight |
1.51Kg (3.33lb) |
|
Unit Price（usd） |
140.00 | |
| |
|
|
|
|
