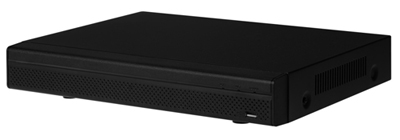

4/8/16CH 720P-Lite Mini 1U HDCVI DVR


Features
>Support HDCVI/Analog/IP Video input
>H.264 dual-stream video compression
>HCVR4104/4108/4116HE-S2: All channel 720P recording
>HDMI/VGA simultaneous video output
>4/8/16 channel synchronous playback, GRID interface & smart search
>ONVIF Version 2.4 conformance
>3D intelligent positioning with Dahua PTZ dome camera
>Support 1 SATA HDD up to 4TB, 2 USB2.0
>Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)

Specifications
Model
HCVR4104HE-S2
HCVR4108HE-S2
HCVR4116HE-S2
System
Main Processor
Embedded processor
Operating System
Embedded LINUX
Video
Input
4 channel, BNC
8 channel, BNC
16 channel, BNC
Standard
Analog
NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
HDCVI
720P HDCVI Camera
IP
1080P/720P/D1/CIF IP Camera
Audio
Input
4 channel, RCA
Output
1 channel, RCA
Two-way Talk
Reuse audio input/output channel 1
Display
Interface
1 HDMI, 1 VGA
Resolution
1920×1080, 1280×1024, 1280×720, 1024×768, 800×600
Display Split
1/4
1/4/8/9
1/4/8/9/16
Privacy Masking
4 rectangular zones (each camera)
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression
H.264/G.711
Record Rate
Main Stream:
720P/960H/D1(1~25/30fps)
1*720P(1~25/30fps)+7*(1~15fps)/960H/D1 (1~25/30fps)
1*720P(1~25/30fps)+15*(1~15fps)/960H/D1 (1~25/30fps)
Extra Stream
CIF/QCIF(1~12/15fps)
Bit Rate
96~4096Kb/s
Record Mode
Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval
1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events
Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot,
Buzzer & Screen tips
Video Detection
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input
4 channel
8 channel
16 channel
Relay Output
3 channel
Playback & Backup
Sync Playback
1/4
1/4/9
1/4/9/16
Search Mode
Time/Date, MD & Exact search (accurate to second)
Playback Functions
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode
USB Device/Internal SATA burner/Network
Network
Ethernet
RJ-45 port (10/100M)
Network Functions
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
Max. User Access
128 users
Smart Phone
iPhone, iPad, Android, Windows Phone
Storage
Internal HDD
1 SATA port, up to 4TB
Auxiliary Interface
USB Interface
2 ports(1 Rear), USB2.0
RS485
1 port, For PTZ Control
General
Power Supply
DC12V/1.5A
DC12V/2A
Power Consumption
10W(without HDD)
Working Environment
-10°C ~+55°C / 10%~90%RH / 86~106kpa
Dimension(W×D×H)
Mini 1U, 325mm×255mm×55mm
Weight
1.5KG(without HDD)
