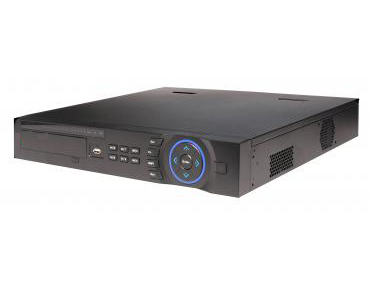

16/32 Channel 1.5U 16PoE Network Video Recorder
|
|
| |
Overview
• 16/32ch IP camera inputs
• 1/1ch Mic in/out
• Compatible with 5Mp, 3Mp, 1080P, 720P, D1 and etc.
• HDMI, VGA output up to 1080P, 1 TV
• 16ch alarm in & 6ch relay out, RS485, RS232
• 4 SATA, 3 USB, 1 RJ45 (1000Mbps)
• Incoming bandwidth: 160Mbps
• Support plug & play, 16 PoE Ports
Features
> Up to 1080p (or 3 channel 5Mp / 4 channel 3Mp) Live view
> H.264/MJPEG dual codec decoding
> Up to 5Mp resolution
> Max 90fps@5Mp, 120fps@3Mp, 240fps@1080p, 480fps@720p, 960ps@D1 preview & recording
> HDMI / VGA simultaneous video output
> 16/32 channel synchronous realtime playback, GRID interface
> Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotech and etc.
> ONVIF Version 2.2 conformance
> 3D intelligent positioning with Dahua PTZ camera
> Support 4 SATA HDDs up to 16TB, 1 eSATA up to 16TB, 4 USB2.0
> Support IPC UPnP, 16 PoE ports
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Technical Spcifications
|
Model |
NVR5416-16P |
NVR5432-16P |
|
System |
|
Main Processor |
Dual-core embedded processor |
|
Operating System |
Embedded LINUX |
|
Video & Audio |
|
IP Camera Input |
16 channel |
32 channel |
|
Two-way Talk |
1 channel Input, 1 channel Output, BNC |
|
Display |
|
Interface |
1 HDMI, 1 VGA, 1TV |
|
Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768 |
|
Display Split |
1/4/8/9/16 |
1/4/8/9/16/25/36 |
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
Recording |
|
Compression |
H.264 / MJPEG |
|
Resolution |
5MP(2560×1920) / 3MP(2048×1536) / 1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) & etc. |
|
Record Rate |
Max 128Mbps ( eg. 16ch 5MP@8Mbps, 32ch 1080P@4Mbps & etc.) |
|
Bit Rate |
48~ 8192kbps |
|
Record Mode |
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
|
Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|
Video Detection & Alarm |
|
Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips |
|
Video Detection |
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
|
Alarm Input |
16 channel |
16 channel |
|
Relay Output |
6 channel |
|
Playback & Backup |
|
Sync Playback |
1/4/9/16 |
1/4/9/16 |
|
Search Mode |
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
|
Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
|
Backup Mode |
USB Device / eSATA Device / Internal SATA burner/ Network |
|
Network |
|
Ethernet |
1 RJ-45 port (10/100/1000Mbps) |
|
PoE |
16 ports (IEEE802.3af) |
|
Network Function |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) |
|
Max. User Access |
20 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Storage |
|
Internal HDD |
4 SATA ports (4HDDs or 3HDDs+1CD/DVD-RW), up to 16TB, Raid (redundancy) |
|
External HDD |
1 eSATA port (Max 4 SATA HDDs), up to 16TB |
|
Auxiliary Interface |
|
USB |
3 ports (2 Rear), USB2.0 |
|
RS232 |
1 port, For PC communication & Keyboard |
|
RS485 |
1 port, For PTZ control |
|
General |
|
Power Supply |
AC 100V~240V, 50/60Hz |
|
Power Consumption |
NVR: 40W (without HDD) |
|
PoE: Max 15W (each) |
|
Working Environment |
-10°C ~+55°C/10%~90%RH/86~106kpa |
|
Dimension
(W×D×H) |
1.5U, 440mm×460mm×68mm |
|
Weight |
5KG (without HDD) |  |
| |
|
|
|
|
