Features
>Powerful 30x optical zoom
>Ultra-low light star-light camera
>H.264 & MJPEG Three-stream encoding
>Max 60fps@720P and 30fps@1080P resolution
>Defog, WDR, EIS, ROI, Day/Night(ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC,BLC
>Auto-tracking and IVS
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>Max 240°/s pan speed, 360° endless pan rotation
>Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
>Built-in 7/2 alarm in/out
>Support intelligent 3D positioning with DH-SD protocol
>Micro SD memory, IP67, IK10, Hi-POE
>IR Distance up to 200m
Specifications
|

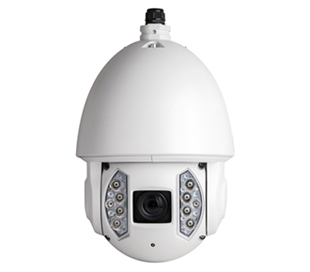

Model |
SD6AE230F-HNI |
|
Camera |
|
Image Sensor |
1/1.8" CMOS |
|
Effective Pixels |
1944(H) x 1092(V), 2 Megapixels |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
1/1 ~ 1/30,000s |
|
Min. Illumination |
Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux (IR on) |
|
S/N Ratio |
More than 56dB |
|
Video Output |
BNC(1.0Vp-p/75Ω), PAL / NTSC |
|
Camera Features |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Backlight Compensation |
BLC / HLC / WDR |
|
White Balance |
Auto, ATW, Indoor, Outdoor, Manual |
|
Gain Control |
Auto / Manual |
|
Noise Reduction |
Ultra DNR (2D/3D) |
|
Privacy Masking |
Up to 24 areas |
|
Digital Zoom |
16x |
|
EIS |
Support |
|
Defog |
Support |
|
Lens |
|
Focal Length |
6mm~180mm(30x Optical zoom) |
|
Max Aperture |
F1.6 ~ F4.8 |
|
Focus Control |
Auto / Manual |
|
Angle of View |
H: 51.2° ~ 1.8° |
|
Close Focus Distance |
100mm~ 1000mm |
|
PTZ |
|
Pan/Tilt Range |
Pan: 0° ~ 360° endless; Tilt: -10° ~ 90°, auto flip 180° |
|
Manual Control Speed |
Pan: 0.1° ~240° /s; Tilt: 0.1° ~120° /s |
|
Preset Speed |
Pan: 240° /s; Tilt: 200° /s |
|
Preset |
300 |
|
PTZ Mode |
5 Pattern, 8 Tour, Auto Pan, Auto Scan |
|
Speed Setup |
Human-oriented focal length/ speed adaptation |
|
Power up Action |
Auto restore to previous PTZ and lens status after power failure |
|
Idle Motion |
Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period |
|
Time Task |
Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time |
|
Protocol |
DH-SD, Pelco-P/D (Auto recognition) |
|
Video |
|
Compression |
H.264 / MJPEG |
|
Resolution |
1080P(1920×1080) / 720P(1280×720) /D1(704×576/704×480)
/CIF(352×288/352×240) |
|
Frame Rate |
Main Stream |
1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps) |
|
Sub Stream 1 |
D1/CIF(1 ~ 25/30fps) |
|
Sub Stream 2 |
720P/D1/ CIF (1 ~ 25/30fps) |
|
Bit Rate |
H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps |
|
Audio |
|
Compression |
G.711a / G.711u(32kbps)/ PCM(128kbps) |
|
Interface |
1/1 channel In/Out |
|
Intelligent Function |
|
Auto Tracking |
Single-scene, multiple-scene, panorama-scene |
|
IVS |
Tripwire, Intrusion, Cross Warning Zone, Perimeter Protection, Loitering Detection, Abandoned Object Detection, Missing Object Detection, Illegal Parking, Fast Moving and etc. |
|
Tracking Trigger Mode |
Manual / Auto (alarm triggered) |
|
Tracking Trigger Event |
Targeting, Zoom, Tracking, Recording, Snapshot, Alarm and etc. |
|
Network |
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Protocol |
IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
|
Compatibility |
ONVIF PSIA CGI |
|
Max. User Access |
20 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Auxiliary Interface |
|
Memory Slot |
Micro SD, Max 64GB |
|
RS485 |
1 |
|
Alarm |
7/2 channel In/Out |
|
General |
|
Power Supply |
AC24V/3A(±25%), Hi-POE |
|
Power Consumption |
20W, 43W (IR on, Heater on) |
|
Working Environment |
-40ºC ~ 70ºC / Less than 90% RH |
|
Ingress Protection |
IP67, IK10 |
|
Dimensions |
Φ240(mm) x 382 (mm) |
|
Weight |
6.75kg |  |
