Description

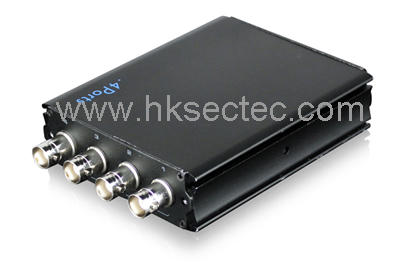

ST-214 is a 4channel passive video balun,it allows transmit 4channel color or mono PAL、
NTSC、SECAM video format over UTP Cat 5/5e/6.In the project,it can work with ST-1XX series
passive or active video balun,it is featured with long distance transmission,high transmission quality,
strong anti-electromagnetic radiation capability,it is widely used in video surveillance and control system;
Features
Power supply:No need additional power;
Transmission effect:realtime transmit PAL、NTSC、SECAM video format,image clear and stable;
Transmission distance:distance up to 300m working with passive video balun;distance up to 1500m
working with active video balun;Main function:syn transmission 4channel video signals
over 1pcs network cable Anti-interference protection:super lightning surge protection,anti-static capability;
Appearance structure:compact,support MIT rack,easy installation;
|
|
Item |
Description |
|
Function |
Transmission Channel |
4ch |
|
`Video Properties |
Video Connector |
4ch |
|
Transmission Distance |
0-300m(with pasive products)
0-1500m(with active products) |
|
Coaxial video Conenctor |
Femal BNC Port |
|
SECTEC Cable Video Connector |
Female RJ45 Port,8ch Screw Push Terminal |
|
Compatability |
PAL,NTSC,SECAM |
|
Siganl Transmission Width |
0-6MHz |
|
Protection |
Anti-Interference |
>60dB |
|
Coaxial Video Connector Surge |
2KV Per:IEC 661000-4-5 |
|
Communication Port Surge Protection |
2KV(different mode) 4KV(common mode) per:IEC 61000-4-5 |
|
ESD |
1a contact discharge level 3
1b air discharge level 3
per:IEC 61000-4-2 |
|
Environment |
Operation Temperature |
0-55°C |
|
Storage Temperature |
-20-70°C |
|
Relative Humidity |
0-95%(non-condensing) | |
