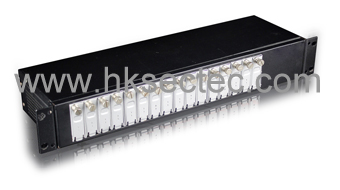

The model ST-116AR-U15 is a multichannel active video balun,it allows transmit 16channel

color or mono PAL、NTSC、SECAM video format over SECTEC Cat 5/5e/6.In the project,

it can work with ST-1XX series passive or active video balun,it is featured with long distance

transmission,high transmission quality,strong anti-electromagnetic radiation capability,

it is widely used in video surveillance and control system;

·power supply: 100～240V AC ;
·transmission effect:realtime transmit PAL、NTSC video format,video clear and stable;
Unique function: adaptive equalization free adjustment function,DC restore filter ·processing function;
·Transmission: 0-1200m working with active transmitter;
·Main function: single channel input and dual output,AGS adjustment image;
·Anti-interference protection:Wide voltage input,super lightning surge protection,anti-static and interference capacity;
·Appearance structure:in line with 1.5U rack,can be installed on the 19” cabinet;

Specification

item description   function transmission channel 16 channel   video output 2 channel(1 input and 2 output each channel)   transmission distance 0～1200 (working with active video balun)   power voltage range 100～240VAC 50/60Hz   consumption <12W   video transmission performance and connector coaxial video connector female BNC connector   SECTEC cable video connector Female RJ45 connector,8channel pluggable Screw terminal compatible video format PAL、NTSC   signal transmission bandwith 6MHz   anti-interference >70dB   Adjustment mode Adjustment mode Adaptive adjustment   status indicator power indicator blue   signal indicator yellow   Protection level power connector surge protection 2KV/1KA per：IEC61000-4-5   coaxial video connector surge protection 2KV：IEC61000-4-5   cable communication connector surge protection 2KV(different mode) 4KV(common mode) per:IEC61000-4-5   ESD 1a contact discharge level 3 1b air discharge level 3 per：IEC61000-4-2   Operation environment ooperation temperature 0～55℃   storage temperature -20～70℃   humidity(non-condensing) 0～95%   physical properties dimension(L*W*H) 428mm×157mm×73mm（with port length）   shell iron   color black   N.W. 3.6kg   stability （MTBF） >20000h
