ST-VPAD104 ,Heyday

产品搜索:

中文版 | 英文版

产品类型

产品中心	>> CCTV产品配件 >> 双绞线传输器

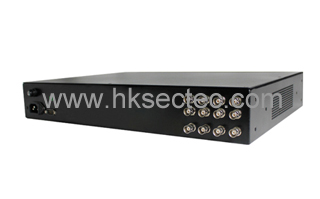

ST-VPAD104 is a 4ch video, power, audio& data transceiver featured with long transmission distance,high performance transmission,super anti-interference and etc...

Description

The model ST-VPAD104 is a transceiver hub that allows transmit CCTV video、audio、data and

DC power over single network cable at the same time.The device uses single Cat5/5e/6 SECTEC cable

as transmission medium and work together with ST-VPAD206-RM,it can realtime transmit 4-ch PAL,

NTSC,SECAM color or monochrome video signals、4-ch mono monitor audio、4-ch Rs485 or Rs232 signals

up to 300m,and provide 12V DC power to each camera,simplified the project wiring. In practical project,

it need to used in pair,it is featured with long transmission distance,high performance transmission,

super anti-interference and etc.,professional application in video security monitoring project..

Features

· Power supply: Using 100W（36V/2.8A）high power DC power;
·Main function: Transmit 4-CH video 、mono audio 、data and 12V DC power over single Cat5/5e/6 SECTEC cable;
·Transmission distance: 0～300M(12V DC output);
·Safety performance: Anti-interference 、super surge protection 、anti-static protection、transient shock protection;
·Appearance design:High hardness antirust iron shell, sophisticated technology, solid and durable ,RJ45、

BNC connector convenience and good in sight;

Specification

item		parameter
function	transmission signal channel	4channel (video,audio,data,DC power)
function	distance	0～300m（12V DC output）
Power	max power	100W
	Output power	36V DC
	Max transmission rate	36VDC/1A each channel
video transmission performance and connector	Coaxial video connector	female BNC connector（dual output）
	compatible video format	PAL、NTSC、SECAM video format
	signal transmission bandwith	0～6MHz
	anti-interference	>60dB
	SECTEC cable connector	RJ45 connector
audio transmission performance and connector	connector	famale BNC connector
	bandwith	20～20kHz
	Isolation and withstand voltage	>500V
data control signal performance and connector	connector	DB9/ screw push terminal
	signal category	RS232/RS485
	transmission rate	<500kbps
protection level	Connector protection	2KV per：IEC61000-4-5
protection level	ESD	1a contact discharge level 3 1b air discharge level 3 per：IEC61000-4-2
operation environment	operation temperature	0～55℃
	storage temperature	-20～70℃
	humidity（non-condensing）	0～95%
physical properties	dimension(LWH)	300mm×300mm×66.8mm
	shell	iron
	color	black
	N.W.	2.8kg
stability	(MTBF)	>20000H
