ST-VBW235 is a single channel passive video transceiver. Use CAT5/5e/6 UTP cable as transmission

medium, can realize real-time transmit 1 channel color or PAL、NTSC、SECAM composite video signals.

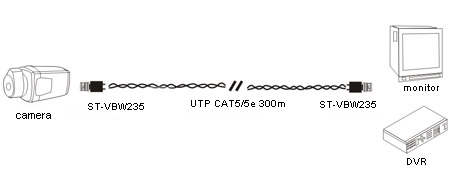

In practical project , the device can work as transmitter or receiver ,and it can also work together with

ST-1XXP and ST-1XXAR series passive or active video UTP transceivers. It features long distance transmission ,

good transmission effect, strong anti-interference. Widely used in security, teaching industry and other complex system environment.



·Power:no power required , simplified project wiring;
·Transmission effect: plug&play,real-time transmit CCTV video signal, video is clear and stable;
·Transmission distance: working with passive transceiver is 300m; working with active transceiver is 1500m;
·Safety : anti-interference, super lighting protection, ESD;
·Appearance design: ABS outer shell, convenient to use in intensive project;
·Installation: BNC-M connector, push-terminal wire.

Item

Specification

Properties

Transmission signal

1 channel

Transmission distance

300m(working with passive product)
1500m（working with active product）

Video transmission properties and port

Coaxial video connector

BNC-M

Twisted-pair video connector

Push-terminal 2channel terminal（free screw ）

Compatible Format

PAL、NTSC、SECAM

Signal transmission band

0-6MHz(-3db)

Anti-interference

>60db

Coaxial video interface protection

2KV(common-mode)
Per:IEC61000-4-5

Twisted-pair video transmission interface protection

2KV(different-mode)，4KV(common-mode)
IEC61000-4-5

Protection

ESD

1a contact discharge electricity level 3
1b air discharge electricity level 3
Per：IEC61000-4-2

Reliable

MTBF

>10000H

Physical Properties

Size（L*W*H）

55mm*19mm*15mm(with interface cable)

Shell

ABS

Color

Black

N.W

15.5g

Environmental

Operating Temperature

-10-55℃

Storage Temperature

-20-70℃

Humidity

0-95% （non-condensing）
