Main Features:

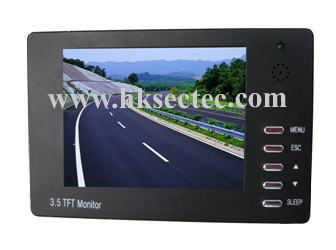

1. Portable tester with3.5 inch TFT display(video input and out put)
2. Auto identity NTSC/PAL
3. Power-saving mode can display in a standby state
4. Small appearance, highly integrated and practical
5. Audio test function, built-in 0.5 speaker, support for audio input / output
6. Support DC12V output, charging for camera.
7. Built-in rechargeable battery DC3.7V/2200mAh, Automatic charging function
8. Power supply: Battery-powered, computer USB port power supply, DC5V/2Aadapter power supply
9. Particularly suitable for project installation of the camera image, the lens range, the lens view angle,
etc. adjust positioning, saves time and effort, convenience
Technical Specifications:
|
Input voltage |
5V±10% 2A(electric current) |
|
battery |
DC3.7V（2200mAh）(Rechargeable lithium battery) |
|
Video signal formats |
NTSC/PAL(auto-identity) |
|
Video output mode |
1.0Vp-p (Full) |
|
louder speaker |
8Ω/0.5w |
|
charge time |
5-6hours |
|
power output |
12V/350mA |
|
working temperature |
-20℃～+60℃ |
|
Packing dimension |
L185mm*W145mm*H80mm |
|
Weight |
N.W: 163g G.W: 595g | |
