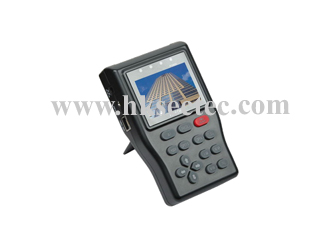

Main Features:
1. Portable design, set the monitor function and PTZ control functions in one small and exquisite appearance
2. 2.5 inch high resolution TNT LCD display, can show camera image,1-channel video input, 1-channel video output.
3. OSD menu input with Chinese and English, fast function keys, easy and intuitive to use
4. Internet line test, can test the line is good or not
5. Support audio test function, built-in 8Ω/1w loud speaker
6. Support DC12V output, offer electricity for camera
7. OSD edit menu, can adjust PTZ controls parameter, easy to operate
8. NTSC/PAL auto-identify, it doesn’t need to set by manual
9. Support RS232 and RS485, various of protocol are compatible, PELCO-P, PELCO-D, KALATEL, SAE etc.
10. Control the PTZ and camera
11. Built-in rechargeable factory configuration DC12V/2A charger, 2 rechargeable lithium batteries;
voltage output line, Audio/Video line etc
12. Low power dissipation, the power can be used for 5-6hours after charging.
13. DC9V,2A power supply and 2 1400MAH lithium battery-powered
14. Auto-reduce power dissipation, to extend the service life
15. Auto-recharge feature, a charge can be use 4 ~ 5 hours continuously.
16. Engineering debugging convenient, saves time and effort
Technical Specifications:
|
System Parameter |
|
OSD Menu |
Chinese & English |
|
Standby Mode |
Off , 5S, 10S, 15S, 30S, 60S |
|
Key Tone |
On/ Off |
|
LED Screen |
|
LCD Display |
2.5” High Resolution TFT LCD |
|
Resolution |
640*480 |
|
Adjustable |
Brightness, contrast, hue, saturation, volume, and Backlight brightness adjustable |
|
Video |
|
Video Input |
1-channel video input, 1-channel video output |
|
video Signal Formats |
NTSC/PAL (auto-identity) |
|
video Output Mode |
1.0±0.2Vp-p, 75Ω |
|
Audio |
|
Audio Input |
1-channel audio input |
|
Loud Speaker |
8Ω/0.5w |
|
Cable Test |
|
Cable Test |
Can test network cable is work or not |
|
PTZ Control and Test |
|
Communication Mode |
RS485 / RS232 |
|
Protocol |
PELCO-D, PELCO-P, KALATEL, VICON, etc |
|
Baud Rate |
2400bps, 4800bps, 9600bps, 19200bps |
|
Power |
|
Power Input |
DC12V/2A（±10%） |
|
Power Output |
DC12V/350mA |
|
|
Rechargeable 2 *1400MAH lithium battery |
|
Charging Mode |
Built in chargeable |
|
Charging Time |
4-5 hours |
|
Using Time |
4-5 hours |
|
Low Consumption |
Sleeping mode, display battery power state |
|
Working Environment |
|
Working Temperature |
-10° ~ +50° |
|
Working Humidity |
≤90%, Non-condensing |
|
Physical Feature |
|
Shell Color |
Grey / black / yellow |
|
Dimension (mm) |
258 * 200 * 80 |
|
Weight |
About 1KG |
|
Accessories |
|
Accessories |
Installation manual, warranty card/certification,DC12V/2A adapter, 2 *1400 MAH rechargeable batteries, video wire, power output line, hang rope, cable test head, audio input line | |
